Power and feedwater
200–240 V AC single phase · Type II feedwater
Who it is for
A complete 2 kW system that produces hydrogen on site
HXB-V1 is the 2 kW electrolyzer as a complete system; if you only need the 2 kW stack for your own BoP, that is the HXS-2. Installation feasibility depends on power, water, ventilation, outlet piping and the boundary to purification, drying, compression and storage.
Choose this product when
- Sites using modest volumes of hydrogen continuously where delivery logistics are a burden
- Demonstration or research projects that use remote access to the computer running the desktop app for off-site monitoring and control
- Configurations that connect downstream to drying, storage and compression
SITE CONNECTION
What HXB-V1 covers and what the site provides
HXB-V1 integrates the core functions needed to produce hydrogen. Storage, compression and end-use equipment are configured separately for the site.
HXB-V1
Integrated stack, power, circulation, controls and safety
Hydrogen drying
Not standard · modular product in development
Storage, compression and use
Downstream equipment for the site application
Included supply scope
- Integrated 2 kW stack, power supply, electrolyte circulation, temperature control, automatic water refill and safety logic
- Desktop control app and an MQTT over Ethernet (JSON) interface
- Dryer not included as standard · modular dryer in development · partner product can be recommended when needed immediately
- Dimensional data and an exterior/enclosure-only STEP model available for installation planning
Customer preparation
- 200–240 V AC single phase 50/60 Hz (total consumption approx. 2.4 kW)
- A feed-water tank, recommended quality ASTM D1193 Type II (1.0 µS/cm or below at 25 °C), maximum 30 µS/cm
- H₂ and O₂ outlet, vent and drain piping, plus use, storage or compression equipment
- An indoor 5–45 °C installation environment, ventilation and site hydrogen safety measures
Integrated operation
One unit covers the essential operating loop
Review the integrated hardware first. Open the software views only when you need the detailed daily workflow.
INTEGRATED
The 6U unit combines the core operating functions
- AEM stack and DC power
- Electrolyte circulation and temperature control
- Automatic water refill and operating sensors
- Control and safety logic
Open the operating software views3 views
OPERATIONS SOFTWARE

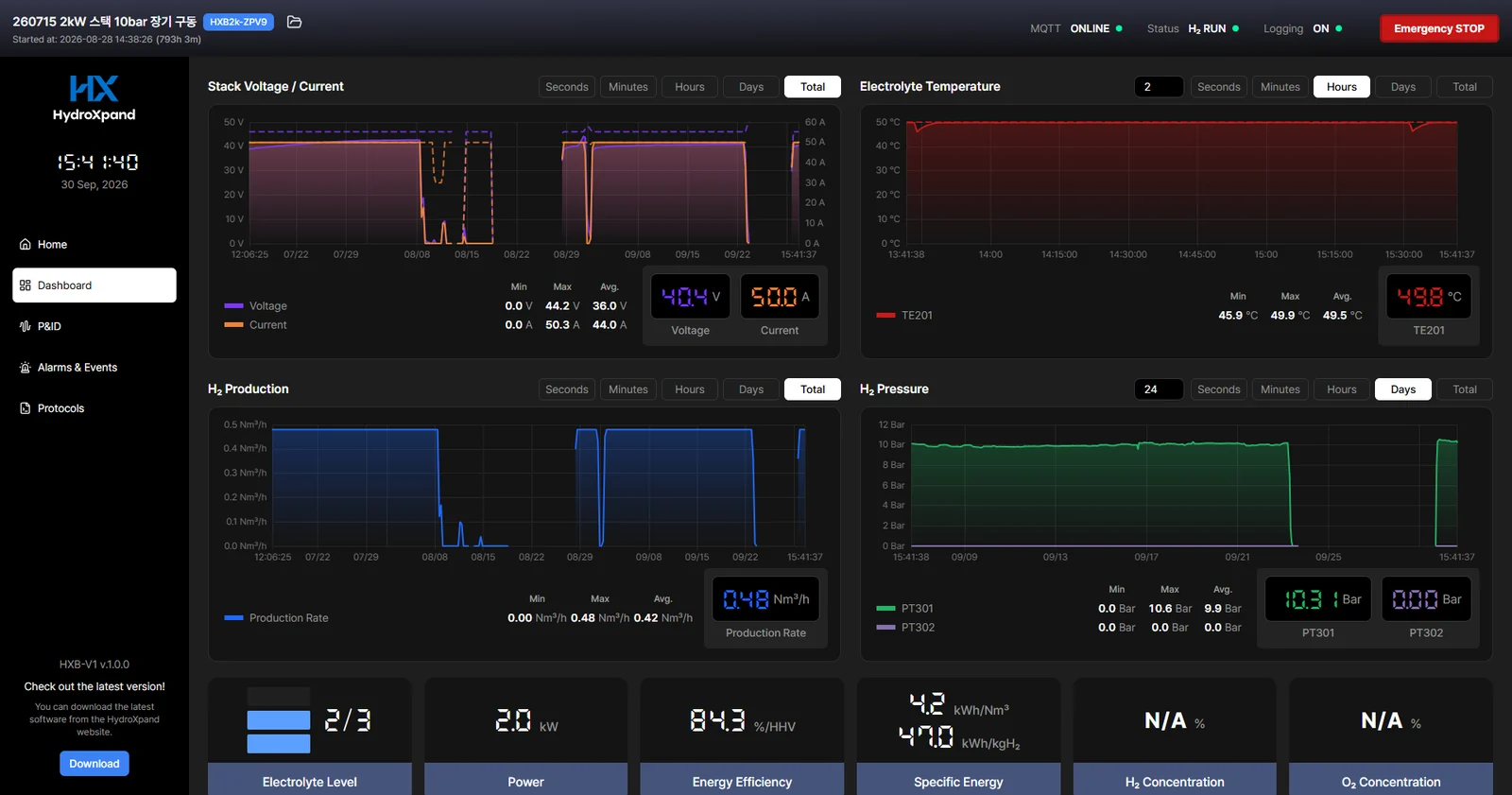

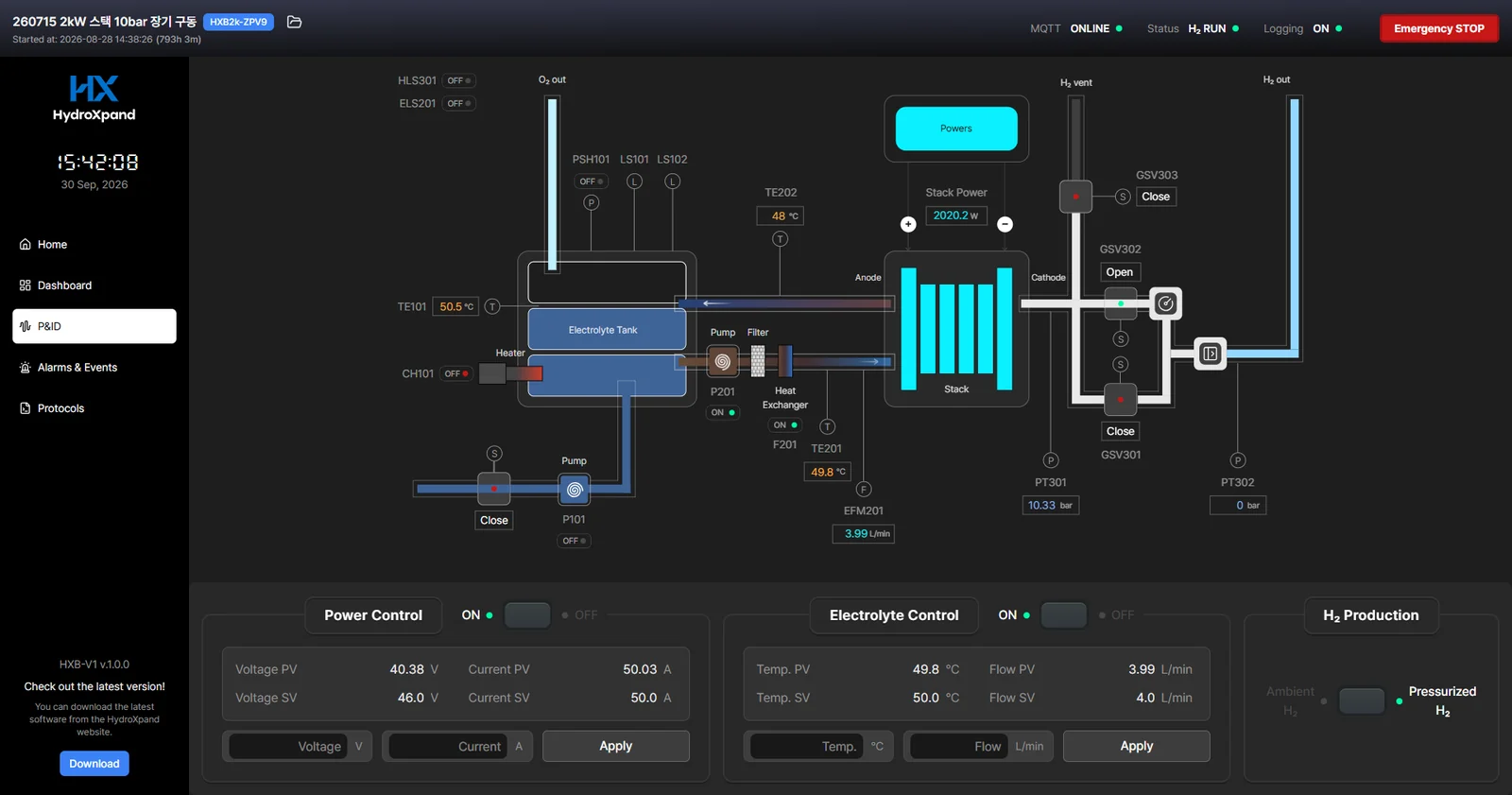

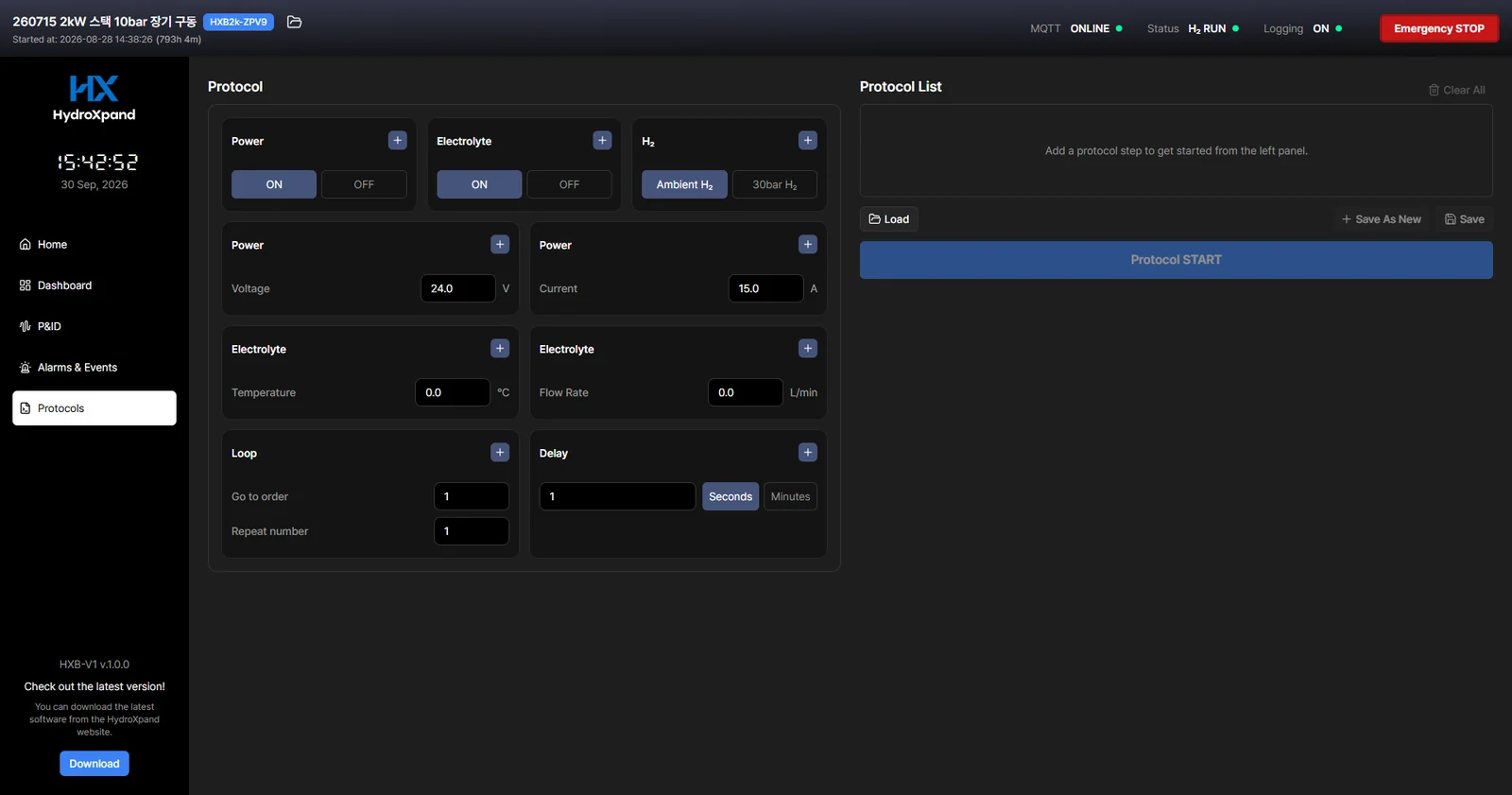

The daily operating loop in three views
Monitor the system, inspect the process state and define an operating protocol. Additional software views are available during a technical review.
Customers
HXB-V1 in customer projects
These records describe the selection purpose and application context, not customer-verified performance.
Specifications
HXB-V1 specifications and supply terms
The specification table, support terms and review documents.
Production performance5 items
| H₂ production | 480 NL/h (approx. 1 kg/day) |
|---|---|
| Energy use (kW) | 2.4 kW (BOL · 2.0 stack + 0.4 BoP) |
| Energy use (kWh/Nm³) | 4.8 (BOL) |
| Energy use (kWh/kg-H₂) | Stack 44 · system 56 (the difference, about 12 kWh/kg, is the BoP) |
| Operating current | 15–67 A (50 A recommended) |
Hydrogen purity & pressure3 items
| H₂ purity @ 0 barg | 98–99% (no dryer) · ≥ 99.999% (with dryer) |
|---|---|
| H₂ purity @ 10 barg | 99% (no dryer) · ≥ 99.999% (with dryer) |
| H₂ pressure | 0 or 10 barg · selectable in software |
Power & water5 items
| Power supply | 200–240 V AC · 50/60 Hz · single phase |
|---|---|
| Water conductivity | Recommended ASTM D1193 Type II (≤1.0 µS/cm) · in-service ≤30 µS/cm |
| Water consumption | 0.55 L/h (50 A · 60 °C) |
| Feed water top-up | Built-in gear pump refills automatically |
| Electrolyte | KOH 0.1–1 M · circulation 2–5 L/min |
Installation7 items
| Ambient temp | 5–45 °C |
|---|---|
| IP rating | IP 20 |
| Dimensions | 482 × 647 × 266 mm (6U) |
| Weight | 51.3 kg |
| Fluid connections | H₂O · H₂ · O₂ · VENT · DRAIN 1/4″ double-ferrule |
| Power inlet | C20 AC inlet (C19 cable) |
| Installation clearance | Front ≥ 300 mm · rear ≥ 400 mm |
Controls & communications4 items
| Control | Desktop app (MQTT/Ethernet) |
|---|---|
| Direct control | Voltage · current · electrolyte temperature · electrolyte flow |
| Stack handling | Removable · disassemblable · replaceable |
| Telemetry | 1 s interval · 8 external control variables (Modbus not supported) |
Safety & warranty2 items
| Safety | H₂ detection · E-STOP · interlocks · electrolyte tank pressure switch auto-stop |
|---|---|
| Warranty | 12 months from shipment, or from acceptance where an acceptance procedure applies (consumables excluded) |
Support, lead time and commercial terms3 items
Support & warranty
One-year warranty under standard operating conditions. Routine checks cover feedwater, leaks and operating data; KOH is replaced by condition rather than on a fixed interval. A returned stack can be refurbished by replacing only the MEA and reusing the hardware.
Lead time & status
Available · 8 weeks from PO acceptance
Commercial terms & origin
EXW basis; DAP and other terms by agreement. Country of origin is the Republic of Korea, with certificate of origin provided.
Pricing depends on quantity and Incoterms, so it is issued as a quotation. Before asking for one, compare five years of buying cylinders against making the same hydrogen on site.
Cost vs cylinders calculator
